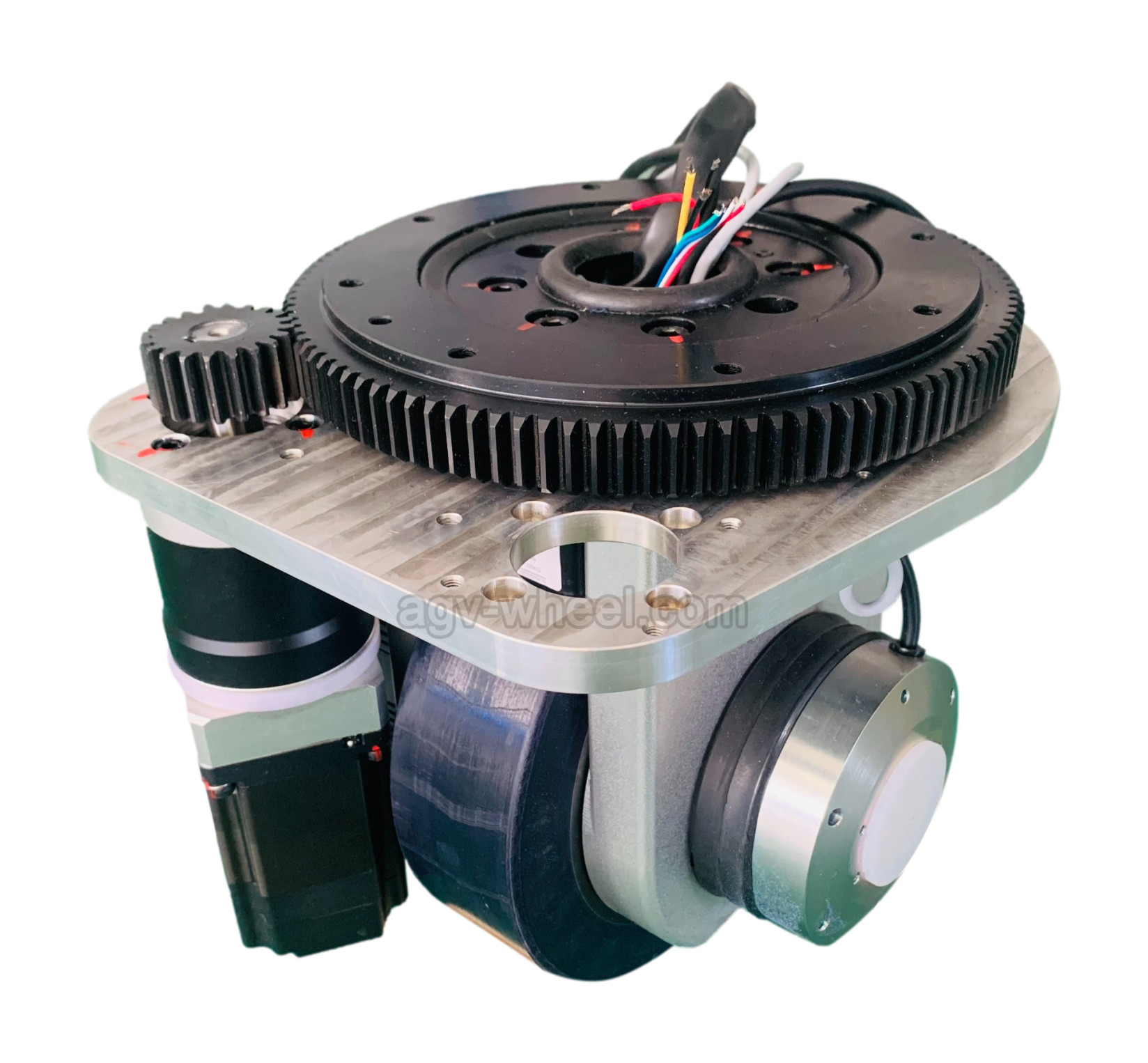

750W Polyurethane AGV Drive Wheel 1 Ton Wheel Hub Drive Assembly
Specification
| Item | Motor Data |
| Model | ZL-270 |
| |
| Motor Type | BLDC |
| Power S2-60 min | 750W |
| Rated Voltage | 48V |
| Rated Current | 19.5A |
| Rated Speed | 3000rpm |
| Rated Torque | 2.4Nm |
| Gear Ratio | 42I |
| Brake Torque | 6Nm |
| Steering Data |
| Power S2-60 min | 200W |
| Rated Voltage | 48V |
| Rated Current | 5.21 A |
| Rated Speed | 3000rpm |
| Rated Torque | 0.64 |
Description
The driving wheels of the AGV trolley are coated with polyurethane, which can be customized according to the required load capacity of the AGV trolleys of various enterprises. Under high load, the polyurethane coated wheels have greater wear resistance to meet the needs of enterprises. Polyurethane-coated AGV drive wheels have various characteristics such as oil resistance, ozone resistance, aging resistance, and radiation resistance, and support special customization by enterprises.
Zhlun has developed a highly integrated wheel drive that combines all functional elements, such as the wheel, a high-precision planetary gear, a powerful electric motor and a brake and electronics, into one all-inclusive solution. This modular and scalable system boasts high performance in a compact design and lets users make adaptations to the load capacity, torque, interfaces, sensor system and control profiles.
Function
1. Maximum power density
High radial loads and constantly high acceleration and speed
2. Long service life
Drive system designed for efficiency with a long-lasting PUR wheel
3. Low level of maintenance
Components can be replaced individually thanks to the modular design
4. Intelligent drive system
Plug & Play function and a central parameter check using an optional sensor system
5. High level of integration
All functional elements housed in a compact space with minimal weight
6. Comprehensive communication
Comprehensive drive control system as an e-axle thanks to standard interfaces (e.g. RS485 / Canopen,etc.)
